Specs
- Color
- White
- Model
- T690B-PL
- Product group
- BISS
- Size
- 7.1 x 5.9 inches (180 x 150mm)
AmScope T690B-PL Trinocular Microscope 40X-2000X
AmScope- Trinocular compound microscope provides
- Trinocular viewing head with vertical
- Reverse-mounted nosepiece with 4x, 10x
- Brightfield, halogen illumination with
- Double-layer mechanical stage with 1mm
About this product

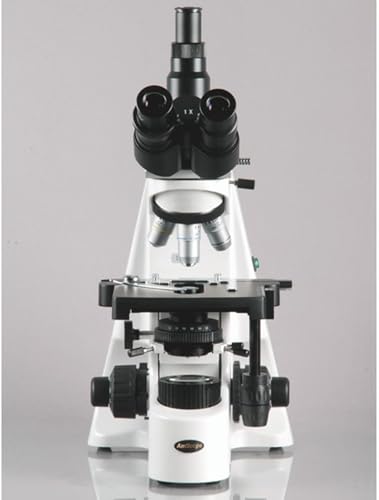

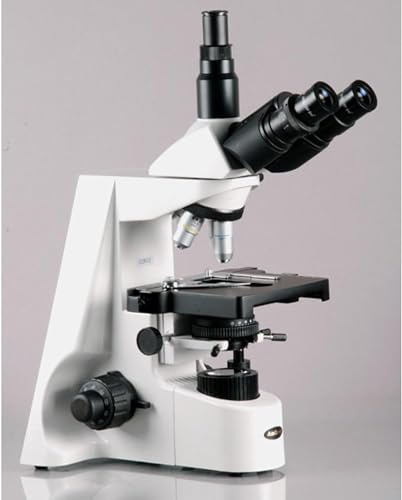

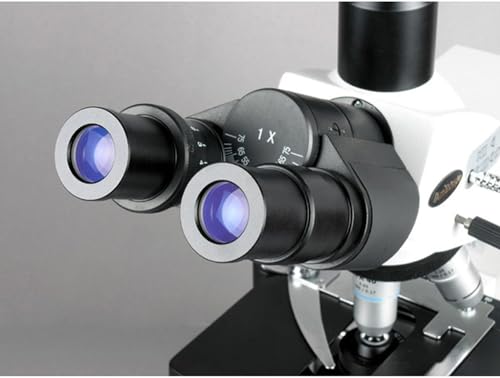

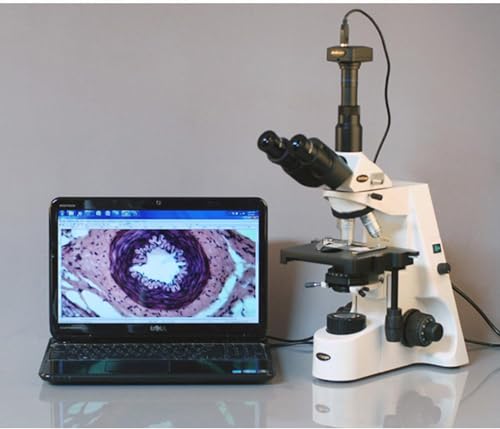

This trinocular compound microscope features a Siedentopf binocular mount and a vertical camera mount. It includes pairs of 10x and 20x super-widefield eyepieces, offering 55 to 75mm interpupillary adjustment. The viewing head has a fixed 30-degree vertical inclination to reduce user strain and can rotate 360 degrees for shared viewing.

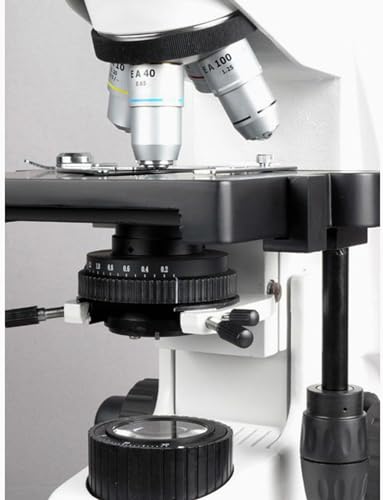

The reverse-mounted nosepiece holds 4x, 10x, 40xS, and 100xS DIN infinity plan achromatic objectives, providing a longer working distance. Illumination is brightfield halogen with a rheostat for intensity control, complemented by a Kohler condenser with two iris diaphragms for precise focus. A double-layer mechanical stage, measuring 7.1 x 5.9 inches, includes 1mm divisions and a stage stop, alongside graduated coarse and fine focus with tension control.
