Vabiooth Trinocular Metallurgical Microscope

Specs

Color
White
Product group
BISS
Size
4K - Infinity Polarizing Metallurgical

Vabiooth Trinocular Metallurgical Microscope 4K White

Vabiooth
$2,849 Checked 1 hour ago
View on Amazon
  • This advanced metallurgical microscope
  • Infinity Optical System Objective & 22mm Flat Field Eyepiece

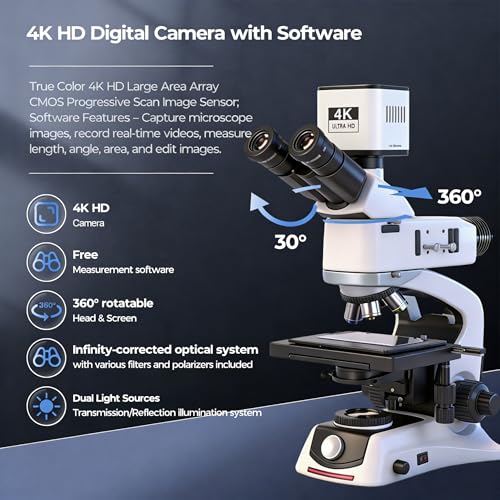

  • 4K Camera
  • LED illumination & Abbe Condenser

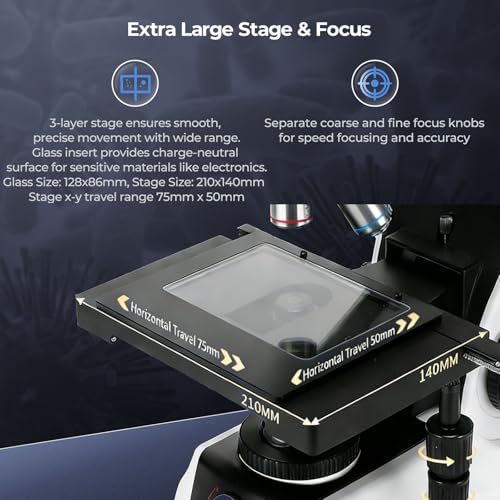

  • Extra Large Stage & Focus

About this product

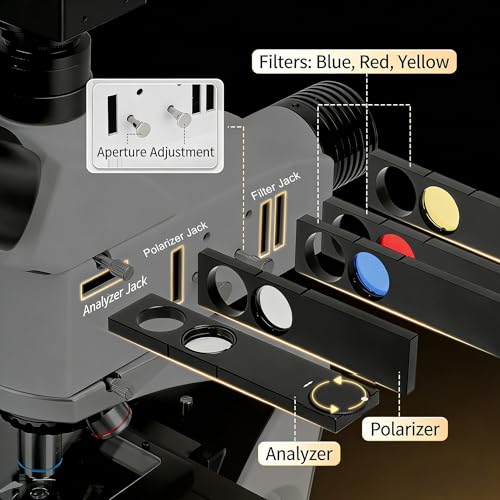

This Vabiooth microscope features a state-of-the-art LED dual-illumination system, providing superior, cool, and stable brightness. It includes a polarizer, analyzer, and RGB filter set for observing materials in cross-polarized light, revealing crystal grains, stress patterns, and microstructure. The integrated 4K camera supports HDMI transmission, with built-in imaging software for photo measurement and image comparison without requiring an external PC.

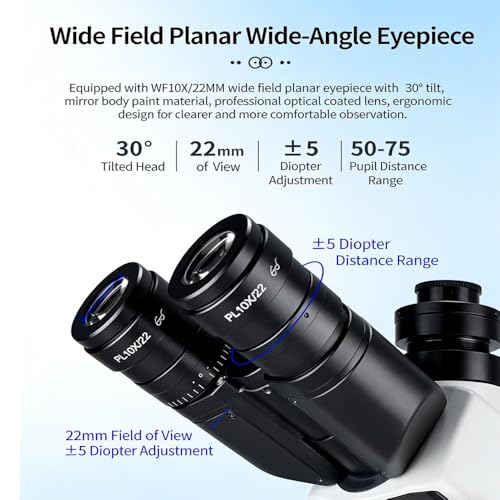

The optical system includes infinity achromatic objectives and PL10X/22mm wide-field flat-field eyepieces, offering clear and sharp images with improved resolution and edge quality. A 3-layer mechanical stage provides precise movement for specimens, with a large translation range for viewing larger samples. Separate coarse and fine focus knobs, along with low-position coaxial controls, ensure efficient and accurate focusing for varied analytical tasks.

View on Amazon

Similar products

Layout
Product Brand Category Trend Price Change Updated
SWIFT Compound Trinocular Microscope white SWIFT Compound Trinocular Microscope 3MP White SWIFT Compound Trinocular Microscopes $309 — 46 minutes ago
AmScope OMAX M83EZ-C13S digital trinocular microscope AmScope OMAX M83EZ-C13S 2500X Digital Trinocular Microscope AmScope Compound Trinocular Microscopes $339.99 — 51 minutes ago
OMAX M83EZ-C50U Trinocular Digital Compound Microscope OMAX M83EZ-C50U 2500X Trinocular Digital Microscope OMAX Compound Trinocular Microscopes $498.99 — 54 minutes ago
AmScope T690B-PL Trinocular Compound Microscope AmScope T690B-PL Trinocular Microscope 40X-2000X AmScope Compound Trinocular Microscopes $499.99 — 55 minutes ago
AmScope T670Q-PL 1000X Plan Infinity Compound Microscope with LED Koehler illumination and trinocular port AmScope T670Q-PL 1000X Plan Infinity Microscope AmScope Compound Trinocular Microscopes $1,181.99 — 57 minutes ago
AmScope T390B-PCS Trinocular Microscope AmScope T390B-PCS Phase Contrast Microscope AmScope Compound Trinocular Microscopes $784.99 — 58 minutes ago
AmScope IN300TC-FL Long Working Distance Inverted Fluorescence Trinocular Microscope AmScope IN300TC-FL Inverted Fluorescence Trinocular AmScope Compound Trinocular Microscopes $5,737.99 — 1 hour ago
AmScope T490B-DK Trinocular Microscope AmScope T490B-DK Trinocular Dark Field AmScope Compound Trinocular Microscopes $596.99 — 1 hour ago

Questions

What type of illumination does the Vabiooth Trinocular Microscope use?

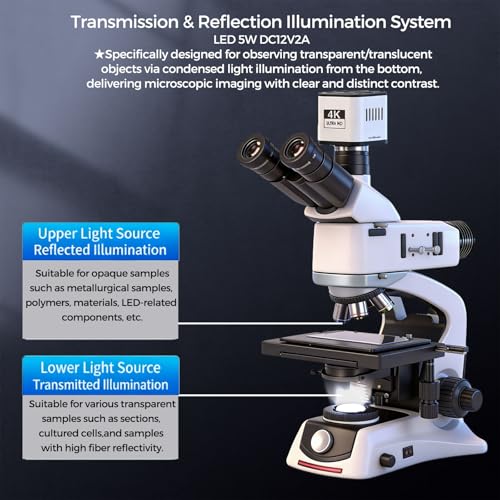

The Vabiooth Trinocular Metallurgical Microscope utilizes a state-of-the-art LED dual-illumination system, including Kohler 5W LED transmitted and reflected illumination with a 1.25 NA Abbe condenser.

What is the magnification range of this Vabiooth microscope?

The Vabiooth Trinocular Metallurgical Microscope offers a magnification range of 50X-500X, suitable for detailed material science and failure analysis.

Does the Vabiooth 4K microscope require a separate computer for imaging?

No, the Vabiooth 4K Camera microscope includes built-in imaging software, allowing operation and functions like photo measurement and image comparison directly via a connected display and mouse.

What are the key features of the optical system in the Vabiooth microscope?

The Vabiooth microscope features an infinity optical system with achromatic objectives and PL10X/22mm wide-field flat-field eyepieces, designed to provide clear, sharp, and high-resolution images across the field of view.
